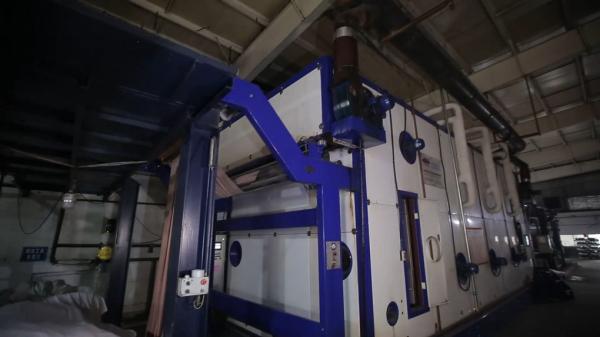

Thermal Oil Flannel Steamer Machine 330m Content

Name: Thermal Oil Flannel Steamer Machine 330m Content
Brand: YONGXIN
Price: 1 USD

Thermal Oil Flannel Steamer Machine 330m Content Manufactures

Brand Name : YONGXIN

Model Number : YXLM1878-280

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : L/C, T/T

Supply Ability : 10 SETS PER MONTH

Delivery Time : 60 DAYS

Packaging Details : WOODEN CASE

Condition : Brand new

Content : 330m

Working width : 2650mm

Heating mode : Thermal oil

Material : Weathering steel

Automation : Fully Automatic

Dimension : 11527×4496×5003mm

Power : 35KW

Temperature : 180~185 degree

Warranty : 1 Year

Contact Now

Flannel Steamer Machine For 250m Content

Working width	2650mm
Content	330m
Steam consumption	350-400KG/H
Adjustable loop length	1.5m~3m
Heat Resource	Thermal oil
Installed power	35kw
Dimension of machine(LxWxH)	11527×4496×5003mm

`1. Content:330m`

`2. Gearing side:right or left(face the machine,opposite the gate)`

`3. Roller width:2800mm；Working width:Maximum 2650mm`

`4. Suitable fiber:50~500g/m² knitting and weaving fiber`

`5. Loading and unloading:Loading from top,same sides in and out,single loading and unloading`

`6. Machine speed:5~70m/min`

`7. Dimension:L×W×H(mm) 11527×4496×5003(just for reference)`

`8. Loop length:1.5m~3m can be adjustable`

`9. Temperature difference from right and left wall:±1﹪℃`

`10. Gearing:Frequency inverter,Frequency motor`

`11. Control:PLC from Siemens, touch screen computer from Kinco`

`12. Running method:Continuous`

`13. Power capacity:35Kw`

`14. Heating resource:Thermal oil`

`15. Dwell time:5-8mins for disperse process`
